HD Series

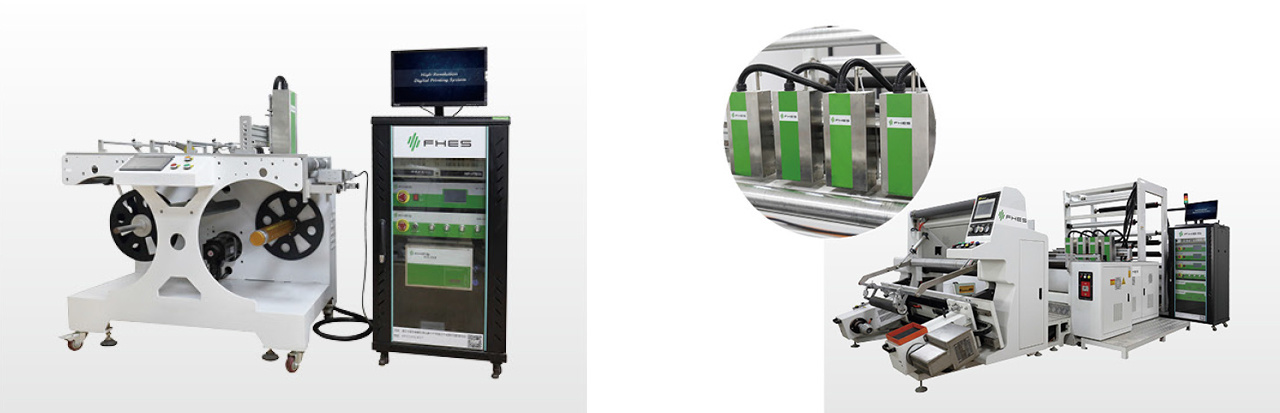

NEGATIVE PRESSURE ADVANCED MODELS quality high resolution inkjet printer
Item No.：
HD Series
Printing Height：32.4mm~54mm
Resolution： 180DPI~600DPI
Printing Direction：↓
Max Expandable Nozzles： Custom Quantity
mobile/WeChat/WhatsApp：+86-13586698787
Email：David@fhes.com.cn
Description
| MODEL | HD100 | HD200 | HD300 | HD200S | HD300S |
PRINTING HEIGHT | 32.4mm | 54mm | 54mm | 54mm | 54mm |
| PHYSICAL RESOLUTION | 300DPI | 600DPI | 600DPI | 600DPI | 600DPI |
| INK DOT SIZE | 7PL | 7PL | 5/7PL | 7PL | 5/7PL |
SPEED RESOLUTION | 110m 600*300DPI | 220m 300*600DPI | 300m 300*600DPI | 440m 300*1200DPI | 600m 300*1200DPI |
High resolution printing
• Compared with traditional marking equipment，thephysical resolution of piezo inkjet printers can reach upto 600DPl,and other resolutions such as 180，300，and360 are available.
Excellent nozzle durability
• Whether it is oil-based ink for permeable surfacematerials or UV-curable ink for non-permeable surfacematerials,because it does not contain solvents, undernormal maintenance,even if it is stopped for a longtime.the nozzleis not easv to be blocked.
Environmentally friendly
• Both oil-based inks and UV-curable inks used in piezoinkjet printers have no VOC emissions
Large format printing
• The printing format of a single printhead is32.4mm，54mm，71.8mm,etc.，and the printingspeed is not affected by the adjustment of thenumber of content ines and height, and a largerprinting format can be obtained through the multi-head seamless splicing technology.
Fast printing speed
• Based on current piezo nozzle technology.the highest ignition frequency can reach 100K,singlehead printing speed can reach more than200 meters/minute under 600*600DPI.
Printhead type• Industrial high-resolution piezo printhead | Printing direction• 360° any direction |
Printing lines• Unlimited number of lines within the print height range | Printing mode• Single or continuous printing |
Printing speed• 0~600 meters/min | Ink type• Oil-based ink, water-based ink, uv curing ink |
Printing content• Fixed and variable text, pictures, various encodings, databases | Ink color• Black, white, single color, invisible color |
Printing font• Any font supported by Windows system | Software• EasyPrint Multifunctional printing system |
Data interface• Network interface, USB, RS232 | Operation system• Windows7 64bite and above |
Communication interface• Gigabit network | Power requirement• 100-240 VAC 50/60Hz |
Controller• 13.3 inch high resolution industrial pad | Printer power• 100-850W |
Humidity• Below 85% non-condensing | Ambient temperature• 0°C to 50°C |
Barcode type• EAN8, EAN13, UPC-A/E, CODE 39, CODE128, EAN128, GS1 DataBar (including 2D composite), Data Matrix, QR, PDF417 …… | |
No limited installation
• Durable stainless steel design can be installed on almost any production platform.
Simple operation
• With the friendly user interface, you can easily operate the equipment by instructions.
Ink cost management
• The software has advanced ink cost management functions, which can accurately calculate the ink cost of printing.
Database printing
• The standard EasyPrint printing software already includes the database printing function, which can be compatible with TXT, EXCEL, CSV and other data packages..
Powerful net-communication function
• Equipped with a communication interface based on network protocol, it can communicate with ERP, MES system and various special software to realize various complex coding applications.
Smart ink level management
• The low ink level alarm can prevent the shutdown caused by the lack of ink, and cooperate with the sound and light alarm to provide support for the staff.
FWS-Fault warning system
• Through the prompts given by the alarm lights, the repairs can be quickly implemented according to the maintenance manual, reducing downtime and improving maintenance efficiency.
One-click emptying
• When replacing different types of ink or stopping the equipment for long term, the one-click emptying function is used to empty the ink path of the equipment easily.
Automatic machine cleaning
• This function can be used to easily complete the cleaning and maintenance of the whole machine before long-term stopping of the equipment, so that the equipment is always in the best condition.
Integrated circuit control ink system
• Both the intelligent siphon and the negative pressure ink system are based on ARM integrated circuit control, with outstanding performance, stability and reliability, and powerful functions,
Ink homogenization self-awakening system
• Keep precipitation inks such as white ink from precipitation, prevent ink precipitation from affecting print quality, or even block the print head, and do not need to discharge ink for cleaning in short or medium-term shutdowns.
Convenient information editing
• Using a 13.3-inch 1080P high-resolution industrial touch screen, the user can directly complete the editing of various texts, graphics, one or two-dimensional codes, and variable data, can also directly upload the printing content through the USB interface or network protocol.
A high resolution inkjet printer is an advanced printing device designed to deliver exceptional image clarity, precise color reproduction, and fine detail for professional and industrial applications. Unlike conventional printers, high resolution inkjet printers utilize sophisticated printhead technology and advanced ink control systems to achieve extremely high dots-per-inch (DPI) output, making them ideal for tasks that demand superior print quality and accuracy. These printers are widely used in graphic design, commercial printing, packaging, textiles, photography, electronics, and labeling industries.
At the core of a high resolution inkjet printer is its precision printhead system, which can eject microscopic ink droplets with exact placement on various substrates. This allows for smooth gradients, sharp text, and highly detailed images, even at small font sizes or complex patterns. Advanced ink formulations, including water-based, solvent-based, UV-curable, and pigment inks, further enhance color vibrancy, durability, and adhesion, enabling printing on paper, plastic, metal, glass, fabric, and other specialized materials.
High resolution inkjet printers are valued for their flexibility and efficiency. They support a wide range of media sizes and thicknesses, from small labels and photo paper to large-format banners and industrial sheets. Digital printing technology eliminates the need for plates, reducing setup time and making short-run and customized printing cost-effective. This capability is especially important in today’s market, where personalized products, variable data printing, and fast turnaround times are increasingly demanded.
Modern high resolution inkjet printers are equipped with intelligent control systems that ensure consistent print quality and reliable operation. Features such as automatic nozzle cleaning, real-time monitoring, color management software, and precise temperature and humidity control help maintain stable performance during continuous operation. User-friendly interfaces and automated workflows reduce operator skill requirements while increasing productivity and minimizing errors.
In industrial environments, high resolution inkjet printers play a crucial role in coding, marking, and product identification. They are used to print barcodes, QR codes, serial numbers, logos, and high-definition graphics directly onto products or packaging with excellent readability and permanence. In sectors such as electronics and medical devices, the ability to print fine lines and micro-text with high accuracy is essential for compliance, traceability, and quality control.
From an economic perspective, high resolution inkjet printers offer significant advantages. Reduced material waste, lower maintenance requirements, and efficient ink usage contribute to lower operating costs. Their ability to handle both small batch and large-scale production provides businesses with flexibility to adapt to changing market demands. In addition, ongoing developments in printhead technology, ink chemistry, and automation continue to improve speed, resolution, and environmental performance.
As digital printing technology advances, high resolution inkjet printers are becoming an indispensable tool across multiple industries. Their combination of precision, versatility, and efficiency supports innovation in design, manufacturing, and branding. Whether used for commercial graphics, industrial marking, or high-end image reproduction, high resolution inkjet printers represent a key driver of modern printing solutions, delivering high-quality results while meeting the demands of speed, customization, and reliability in today’s competitive market.
